80W All In One Solar Street Light80W All In One Solar Street Light80W All In One Solar Street Light80W All In One Solar Street Light80W All In One Solar Street Light80W All In One Solar Street Light

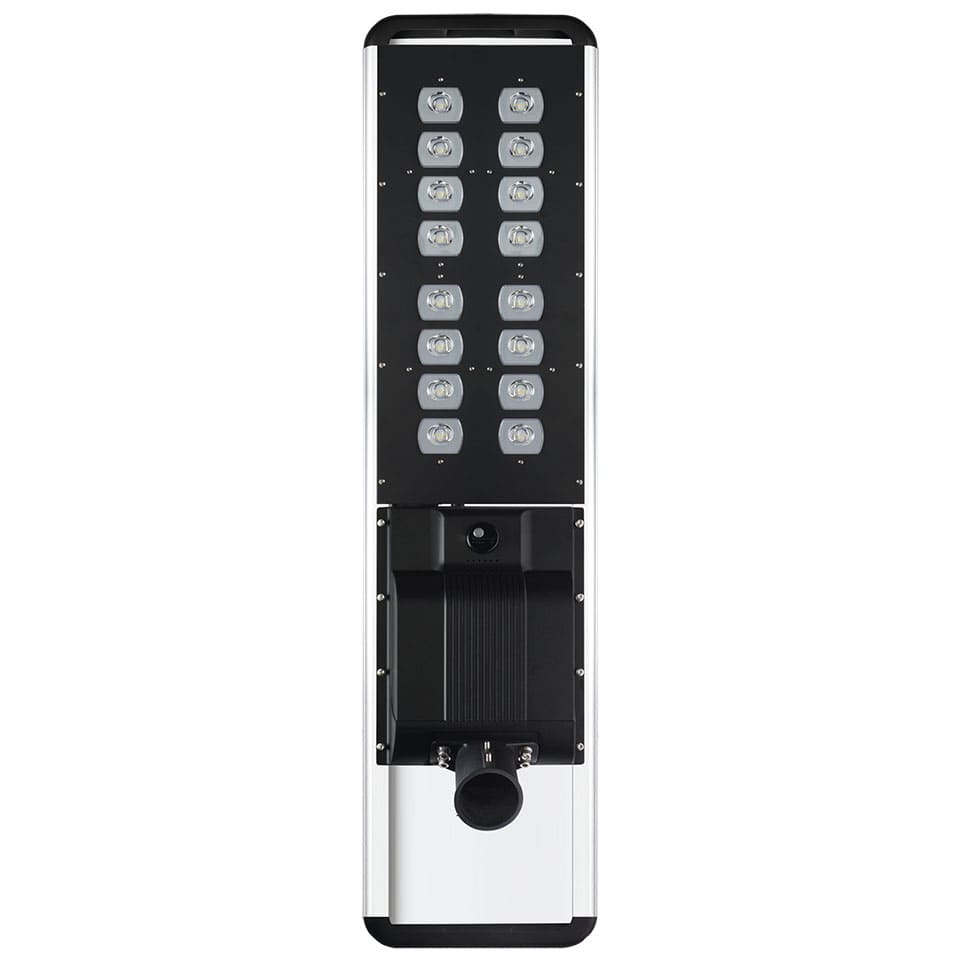

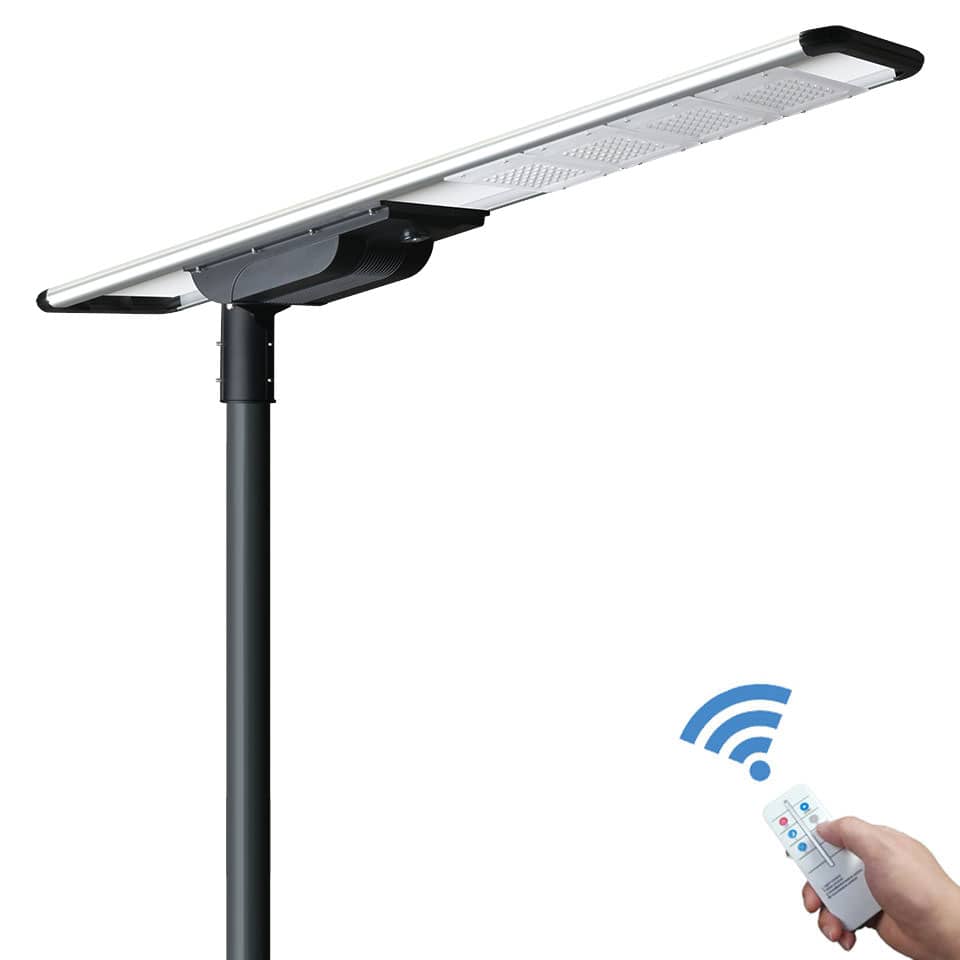

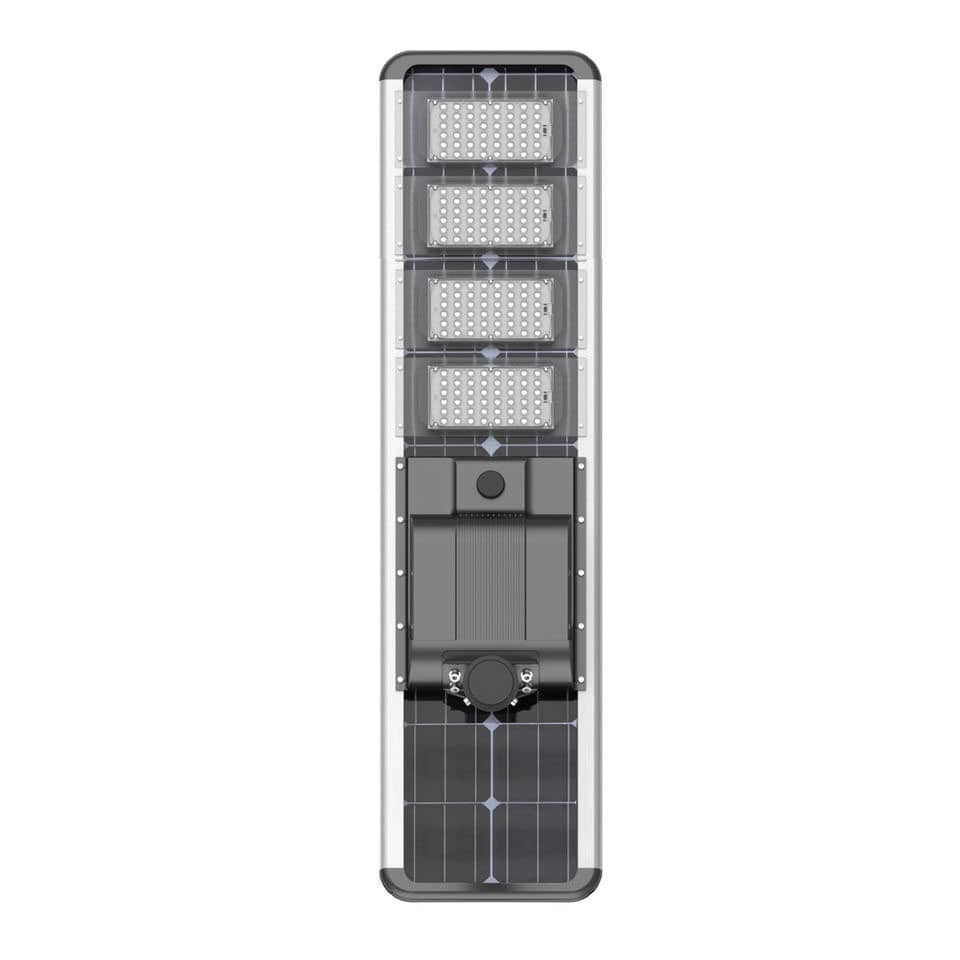

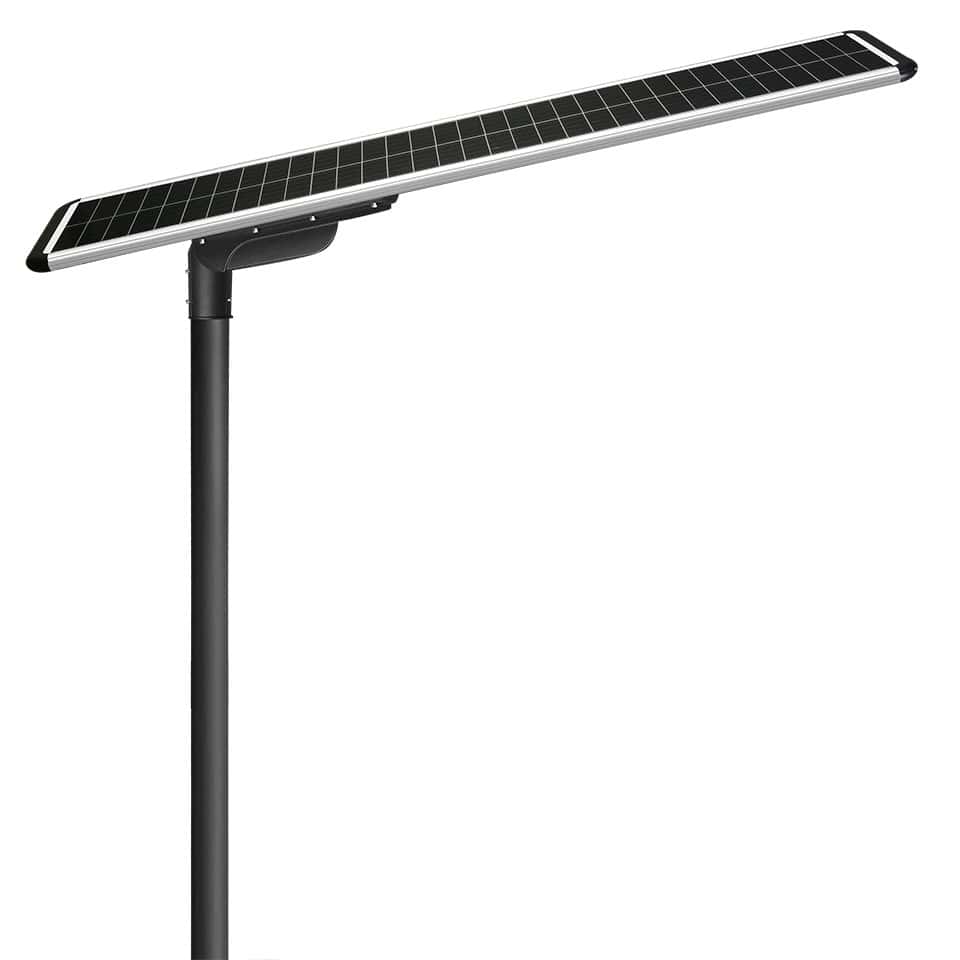

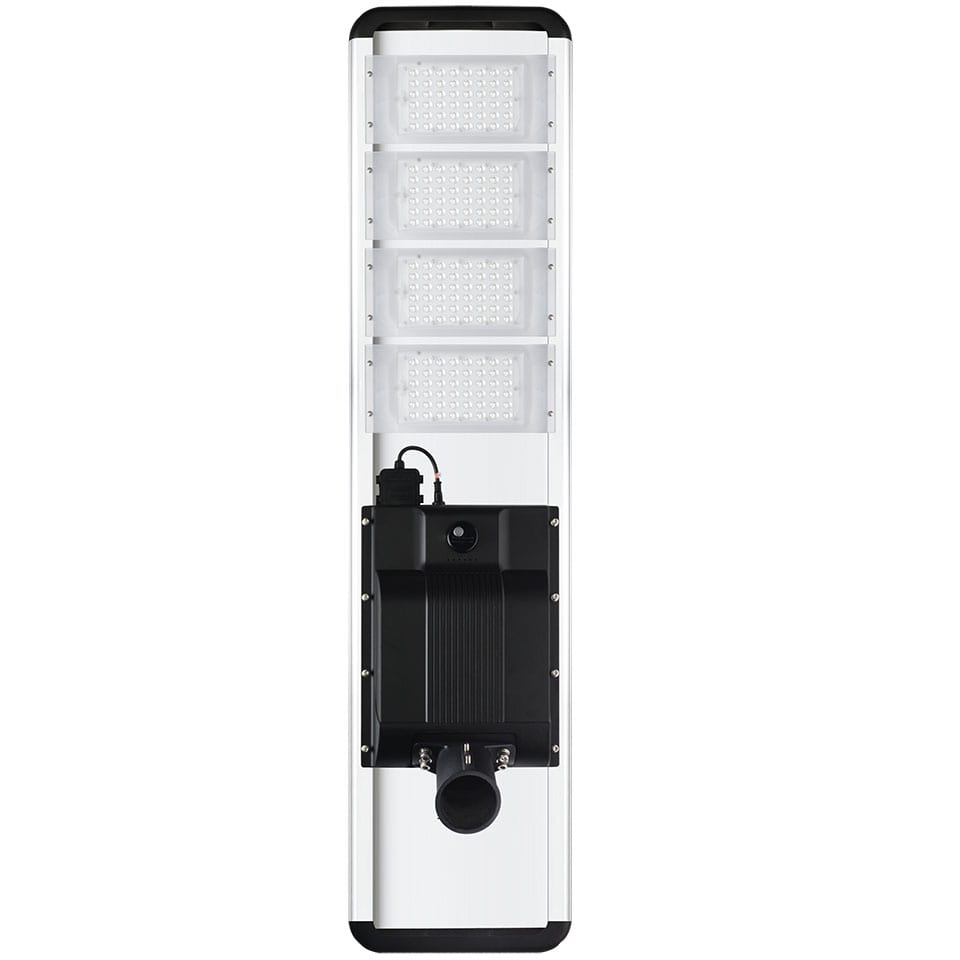

FX Series 80W All In One Integrated Solar Street Light, Smart city iot system lora zigbee solar street light

Key Features:


  • Product Model: SL-AIOFX-80W
  • Material: Aluminum Alloy
  • Power: 48W

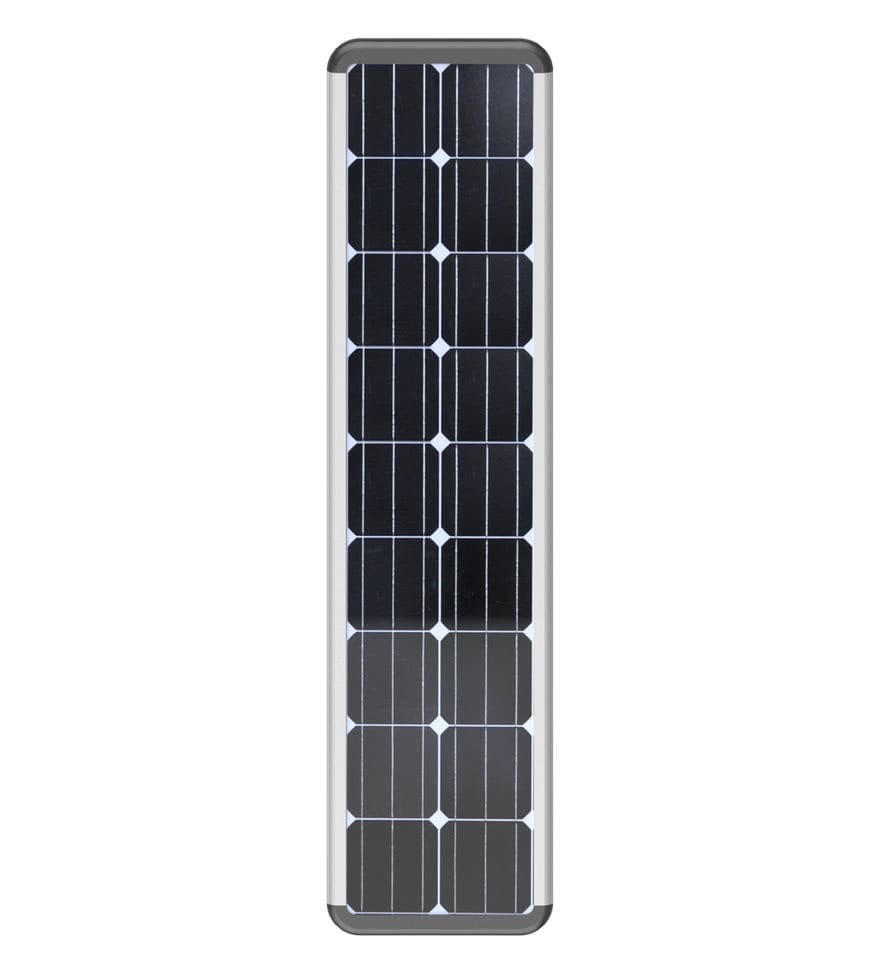

  • Solar Panel: 18V 100W Mono Solar Panel
  • Battery: 12.8V 57AH LifePO4 Battery
  • Remote Control: Support
  • All in one design smart city iot system lora zigbee solar street light
Share to:

CATEGORIES

FX Series 80W Solar Street Light is Ideal for Smart City Iot System Lora Zigbee Solar Street Light, 8000LM 6500K Auto Dusk to Dawn Solar Lights Outdoor Waterproof IP65, for  Parking Lot Yard Garden Street, etc.

  • All in One design,One step installation and FREE maintenance.
  • High-Efficiency: This 80w solar street light uses upgraded mono solar panels, Photoelectric conversion efficiency is more than 23%.
  • High-quality solar street light: large-capacity lithium-ion battery, high-brightness SMD3030 lamp beads designed with optical lens, high bright and uniform.
  • LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
  • Excellent Weather Resistance: This 80w solar street light features a die-cast aluminum housing with excellent impact resistance and heat dissipation.
  • 2 Installation Methods: Juyace Solar light includes a metal bracket and protruding pole which can mount directly onto wall or install it on the post.

All In One Solar Street Light FXSeries

FXSeries All In One Solar Street Light 40W 50W 60W 80W 100W 12W

structure of FXSeries All In One Solar Street Light

structure of FXSeries All In One Solar Street Light

Two Installation Modes Show

easy to replace the battery and led moudle

high and low temnperature resistant

IP65 waterproof

support remote control

Auto on/off,auto dustk to dawn and sensor control

FXSeries All In One Solar Street Light Application

Application of FXSeries All In One Solar Street Light



Product Specifications:


Product Name 80W All In One Solar Street Light
Model No. SL-AIOFX-80W
LED Power 80W
Luminous Flux 170LM/W
Mono Solar Panel 18V/100Wp
LiFePO4 Battery 12.8V/57Ah
Color Temperature 6000K-6500K(It can be customized)
Light Distribution TYPE II & TYPE III
Charge Controller MPPT Intelligent Controller
Control Mode Microwave sensor / Time control / On & Off button
Lighting Model 4 lighting models(Remote control),Customized
Cloudy / Rainy days 3-5 cloudy / rainy days
Charging Time 6-8 hours under strong sunshine
IP Rated / IK Rated IP65 / IK10
Body Materials Aluminum Alloy
Discharging Temp. -25℃ to +65℃
Product Size 1549*386*108mm
Packing Size 1630*100*450mm
Gross Weight 18Kg
Certificates CE,RoHs,IEC,LM80,IK10,IP65,MSDS
Warranty 3 years / 5 years (365 days of lighting warranty)
