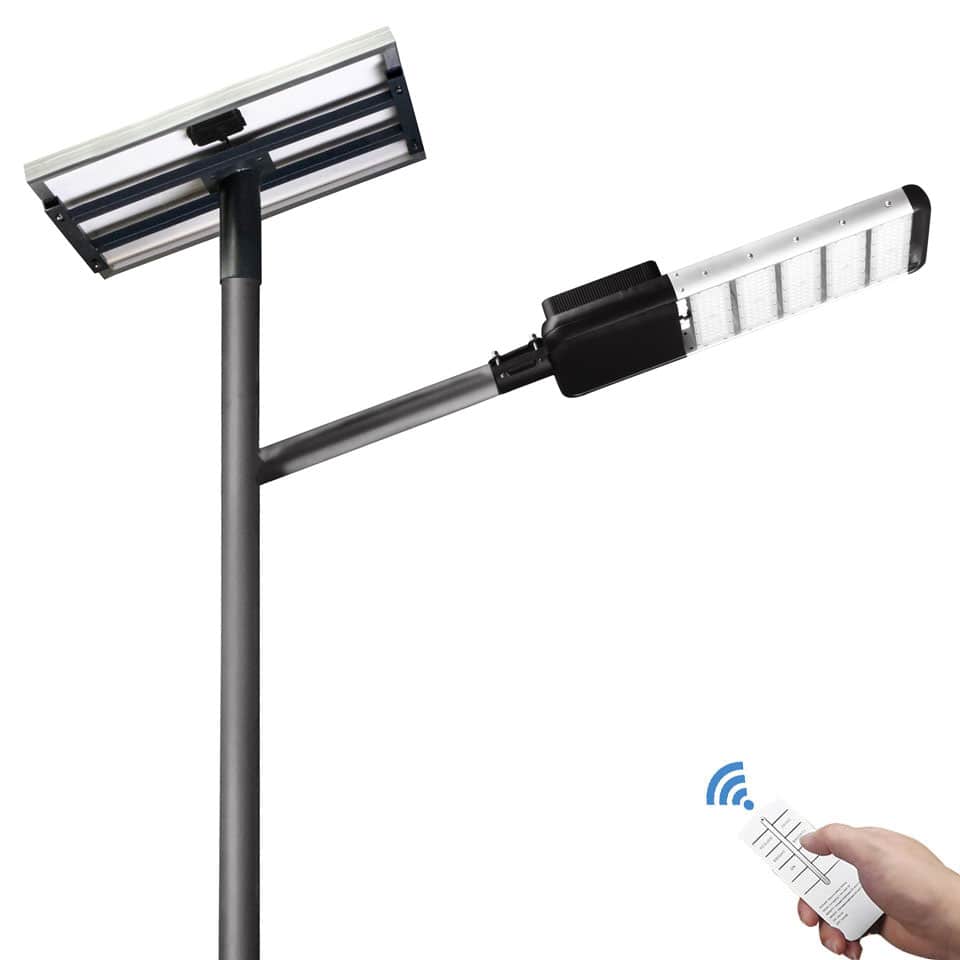

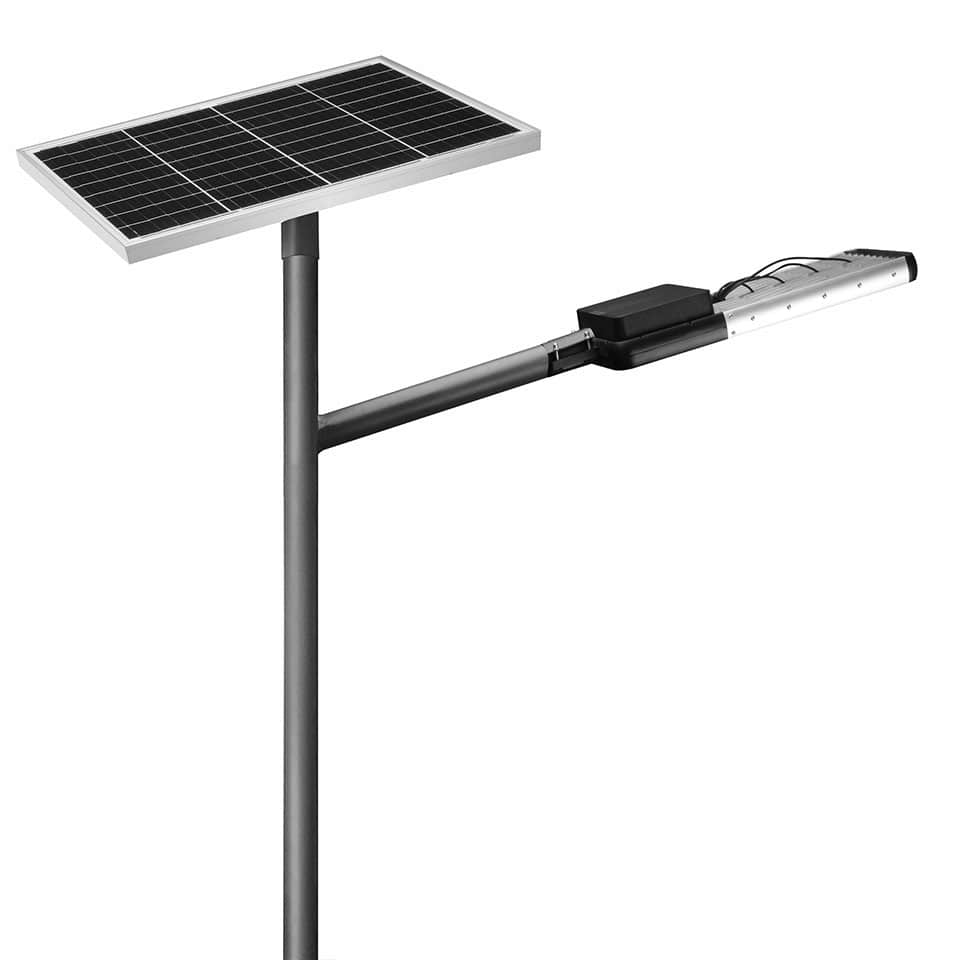

SilkLED ZC series 120W split solar street light is designed for highway & airport lighting solutions, it is combining mono solar panels, LiFePO4 batteries, smart controller,s and LED technology . This 120 watt solar street light provides 18,000LM to 20,000lm since the best quality LEDs are being applied. High brightness will definitely increase visibility and reduce the risk of accidents in public areas at night. It is the best solution for areas that lack electricity supply, rural areas with limited traffic access and communications.
Key Features of 120W Separated Split Solar Street Lights
- All-in-two design, the led street lamp and solar panel are separated.
- High-efficiency up to 23% 18V 170Wp Mono Crystalline solar panel and Multi-busbar cell technology.
- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- 12.8V 60Ah LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
- Support more than 5-7 rainy days with the inteligent charge controller
Product Specifications:
| Product Name |
120W Split Solar Street Light |
| Model No. |
SL-AIT-120W |
| LED Power |
120W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/170Wp |
| LiFePO4 Battery |
12.8V/60Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |
Microwave sensor / Time control / On & Off button |
| Lighting Model |
4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
5-7 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |
| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |
| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
845*280*100mm |
| Packing Size(Lamp) |
880*330*150mm |
| Packing Size(Solar Panel) |
1560*750*80mm |
| Gross Weight |
24Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
