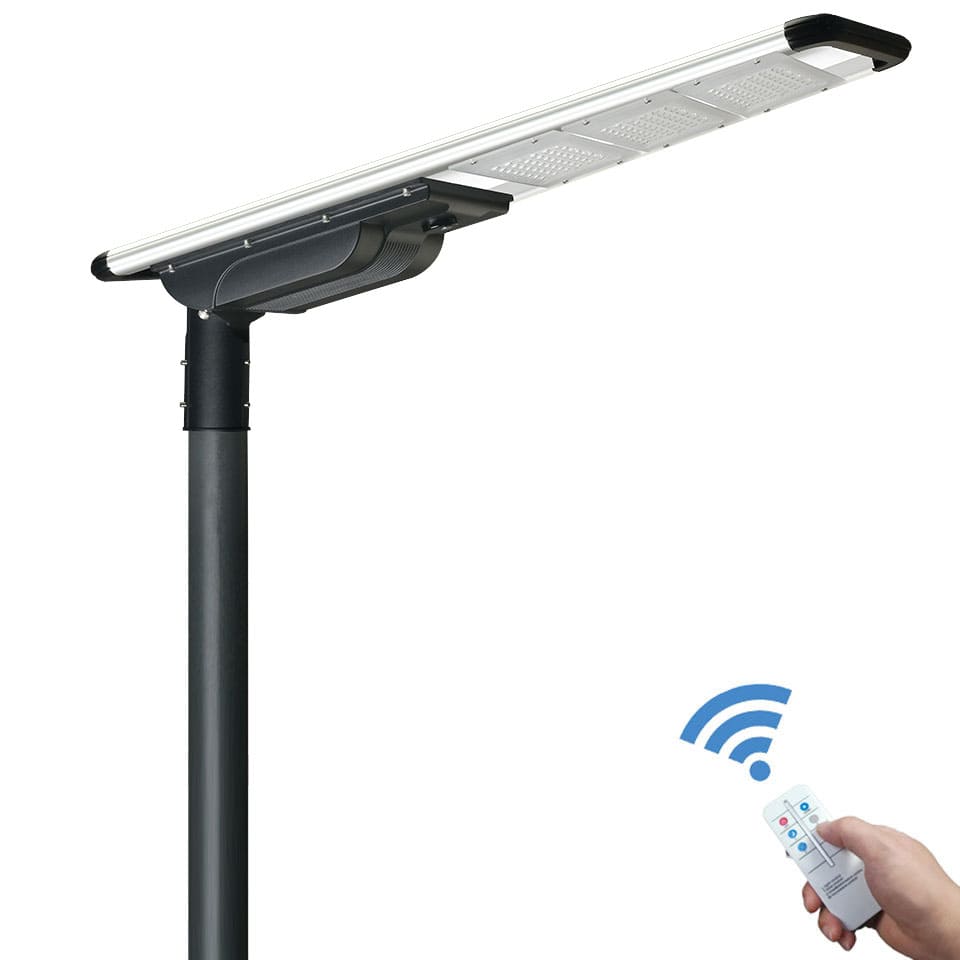

SilkLED FX Series solar street light with CCTV camera utilizes the working principle of solar green energy which does not require an external electricity supply. It provides a standalone off-grid monitoring system and lighting system. Apart from Remote Controller and light controller, the 50 watt solar street light with CCTV camera comes with APP to monitor on the phone anywhere.

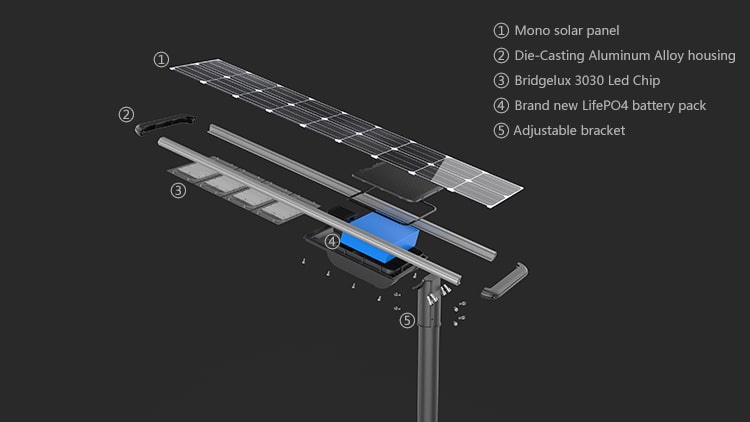

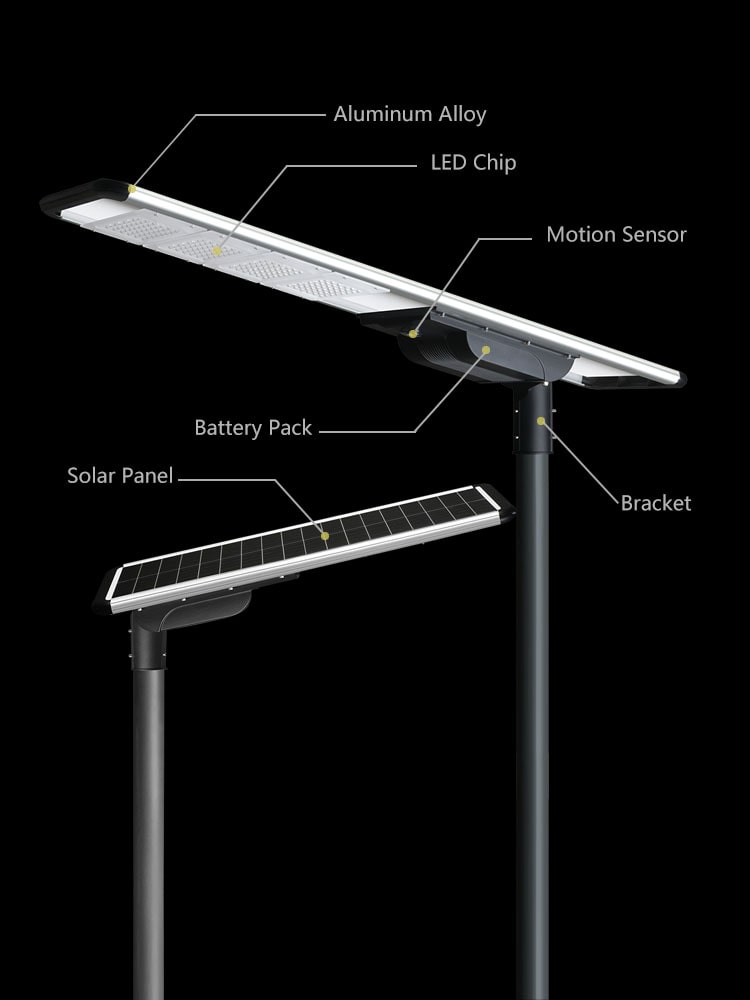

- All in One design solar street light with cctv camera.
- High-efficiency up to 23% Mono Crystalline solar panel and Multi-busbar cell technology.
- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
- DIAlux simulation available.
Product Specifications:
| Product Name |

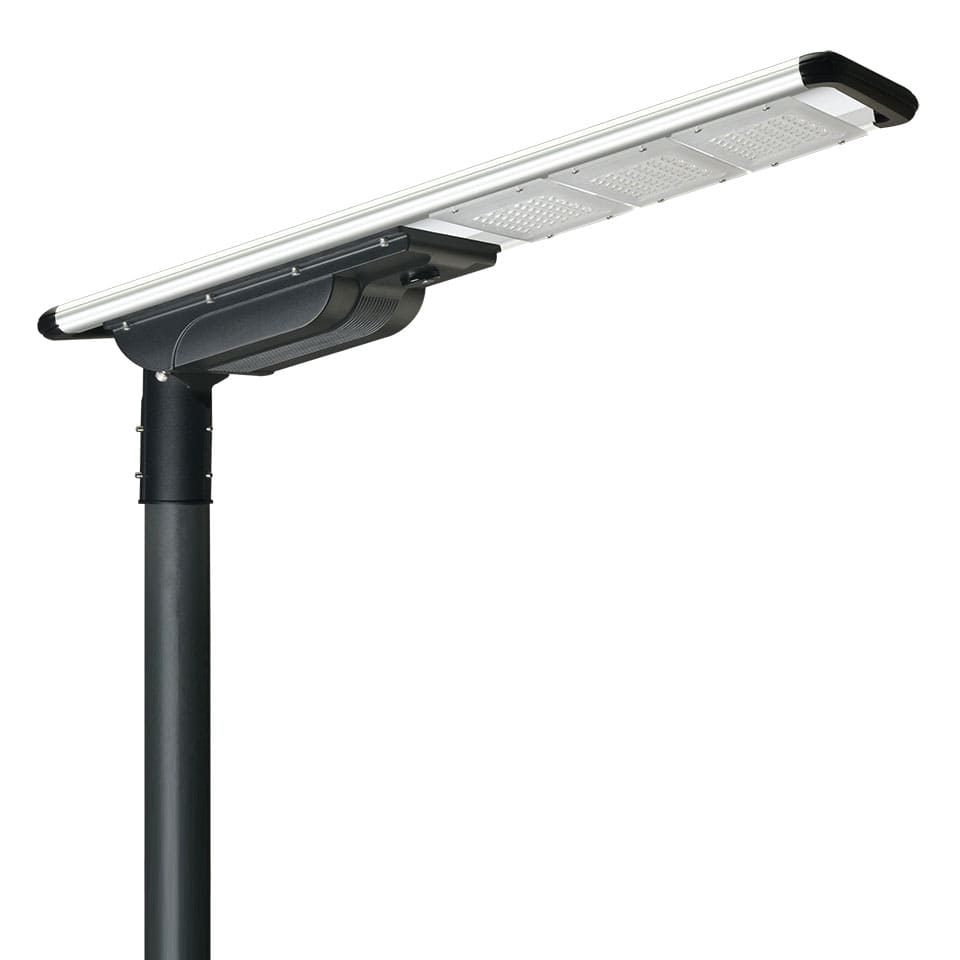

50W Integrated Solar Street Light |
| Model No. |
SL-AIOFX-50W |
| LED Power |
50W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/70Wp |
| LiFePO4 Battery |
12.8V/36Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |

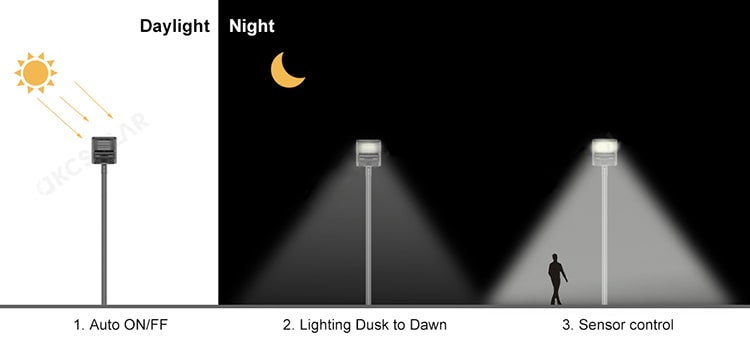

Microwave sensor / Time control / On & Off button |
| Lighting Model |

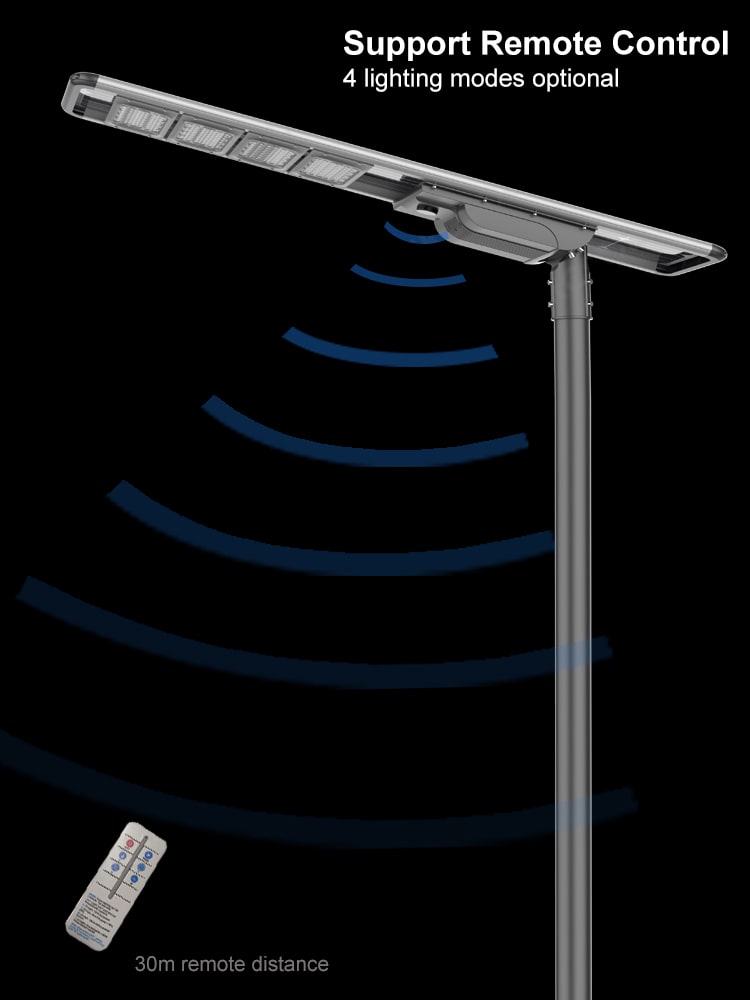

4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
3-5 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |

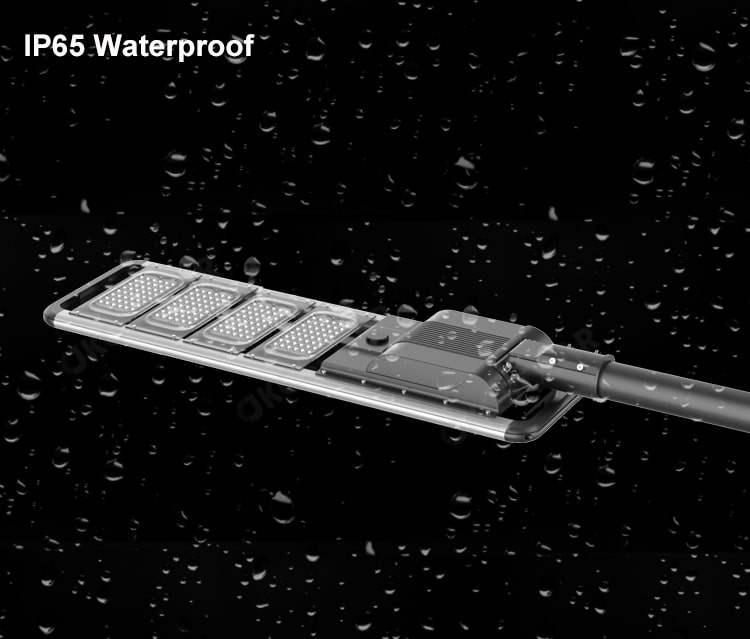

| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |
| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
1078*386*108mm |
| Packing Size |
1140*170*450mm |
| Gross Weight |
14Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
